High Pressure Air Compressors

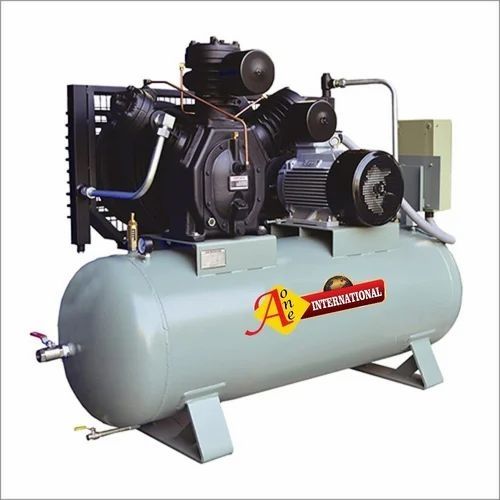

Leading Manufacturers, Exporters, Wholesaler, Trader and Distributor of 20 HP 70 Bar High Pressure Reciprocating Air Compressor, 20 HP Industrial High Pressure Air Compressor and 20 HP Pet Bottle High Pressure Air Compressor from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier, Trader, Distributor, Importer |
| Motor Power | 20 HP |
| Compressor Type | Reciprocating Piston Air Compressor |
| Compression Stage | Multi Stage |
| Maximum Working Pressure | 70 Bar |
| Output Pressure | 70 Bar |
| Free Air Delivery | 50 CFM |
| Piston Displacement | 41-49 CFM / 80 M³/hr |
| Number Of Cylinders | 3 |
| Number Of Pistons | 3 |
| Cooling Method | Air Cooled |
| Mounting Type | Tank Mounted (Horizontal) |
| Drive Type | V-Belt Drive |
| Lubrication Type | Splash Lubrication |
| Control System | Automatic Start-Stop Control (ASSC) |
| Valve Type | Concentric Ring Valve |
| Air Receiver Tank Capacity | 300 / 500 Liter |
| Power Supply | AC Three Phase |
| Motor Specification | IE2 Standard |
| Uses / Applications | PET Bottle Blowing, Pressure Testing, Gas Filling, Laboratories, High-pressure Industrial Pneumatic Operations |
| Business Type | Manufacturer, Exporter, Supplier, Trader, Distributor, Importer |
| Motor Power | 20 HP |
| Compressor Type | Reciprocating Air Compressor |
| Compressor Technology | Multi-Stage Reciprocating |
| Maximum Working Pressure | 70 Bar |
| Free Air Delivery | 41-49 CFM (Approx.) |
| Cooling Method | Air Cooled |
| Mounting Type | Tank Mounted |
| Drive Type | V-Belt Drive |
| Number Of Cylinders | 3 |
| Number Of Pistons | 3 |
| Lubrication Type | Splash Lubrication |
| Control System | Automatic Start-Stop Control |
| Air Receiver Tank Capacity | 300 / 500 Liter |
| Power Supply | AC Three Phase |
| Valve Type | Concentric Ring Valve |
| Uses / Applications | High-pressure Industrial Applications, PET Bottle Blowing, Testing Labs, Gas Filling, Heavy Pneumatic Operations |
| Business Type | Manufacturer, Exporter, Supplier, Trader, Distributor, Importer |
| Motor Power | 20 HP |
| Compressor Type | Reciprocating Air Compressor |
| Compressor Stage | Two Stage |
| Number Of Cylinders | 3 (W Type Configuration) |
| Piston Displacement | 70 CFM |
| Actual Air Flow | Approx. 50 CFM |
| Maximum Working Pressure | 25 Bar |
| Output Pressure | 28 Bar |
| Cooling Method | Water Cooled |
| Lubrication Type | Splash Lubrication (Oil Lubricated) |
| Drive Type | Belt Driven |
| Mounting Type | Tank Mounted (Horizontal) |
| Air Receiver Tank Capacity | 500 Liter |
| Tank Thickness | 10–12 Mm |
| Hydro Test Pressure | 35 Bar |
| Control System | Star-Delta Starter |
| Power Supply | 415V / 3 Phase / 50 Hz |
| Brand | A-ONE |
| Model Number | A1-20TH |
| Warranty | 12 Months |
| Uses / Applications | PET Bottle Blowing Machines, PET Preform Blowing, Packaging Industry, Bottle Manufacturing Plants |
